SPIN VERIFICATION EXAMPLES AND EXERCISES

SPIN VERIFICATION EXAMPLES AND EXERCISES

Included in this memo are some verification exercises that can help new users to get acquainted with Spin. A few example models for standard verification problems are included at the end. All examples are also available as Promela files in the Examples directory of the Spin distribution.

1. Evaluating Search Complexity

This first exercise is meant to give an indication of the nature of the state space explosion phenomenon, and how Spin deals with it. It consists of eight small problems that are solved using Spin. The problems are numbered [1.a] through [1.h]. At each step, it is best to first try to predict what should happen, write down these predictions, then perform the experiment, and explain the result.

[1.a] How many reachable states do you predict will the following naive Promela model generate?

	init {	/* file: ex.1a */
		byte i = 0;
		do
		:: i = i+1
		od
	}
Try a simulation run:
	$ spin -p -l ex.1a	# print out local vars at every step
	...
Will the simulation terminate? []

[1.b] Estimate the total number of reachable states that should be inspected in an exhaustive verification. Is it a finite number? Will a verification run terminate? Try it as follows.

	$ spin -a ex.1a
	$ gcc -o pan pan.c
	$ ./pan
	...
Explain the output. []

[1.c] What would happen if you had declared the variable to be a short instead of a byte ? What if you use an int ? [Hint: see the definition of typical data ranges in the manual page for Promela datatypes]

Try either of them with a verification run. How do you explain the result? [Hint: check the analyzer's defaults by typing "pan --" ] []

[1.d] Next, predict how many reachable states there are for the following system. Write them down as a complete reachability tree.

	#define N	2
	init {	/* file: ex.1b */
		chan dummy = [N] of { byte };
		do
		:: dummy!85
		:: dummy!170
		od
	}
Check your prediction as follows. We're only interested in the size of the state space, not in the obvious problems caused by buffer overflow, so we use the -m option from Spin to define that buffer overflow is to be ignored. (Messages appended to a full buffer are then lost.)
	$ spin -m -a ex.1b	# use -m to ignore buffer overflow
	$ gcc -o pan pan.c
	$ ./pan
	...
Explain the result. []

[1.e] What happens if you set N to 3 ? Express the number of states as a function of N. Use the formula to calculate how many states there will be if you set N to 14 ? Check your prediction as follows.

	$ spin -m -a ex.1b	# use -m to ignore buffer overflow
	$ gcc -o pan pan.c	# optional: use the optimizer -O
	$ time ./pan
	...
Write down:
	T: the sum of user time plus system time for the run
	S: the number of states stored
	G: the number of total number of states generated and analyzed
	V: the vector-size (the amount of memory needed to store one state)

G/T gives you a measure for the efficiency of the run, and
S*V gives you the amount of memory that is needed to store
the state space without compression.
This is not the only place where memory that is used during the search (the stack also consumes memory) but it is typically the largest memory requirement. []

[1.f] The efficiency of the conventional reachability analysis is determined by the state space storage functions. To study this, repeat the last verification run with a smaller and a bigger hash table for storing reachable states:

	$ time pan -w10		# hash table with 210 slots
	...
	$ time pan -w20		# hash table with 220 slots
	...
Explain the results. [Hint: compare the number of hash conflicts.] []

[1.g] How much memory would you need to do a run with N=20 ? (Warning: both the number of reachable states and the number of bytes per state goes up with N. Estimate about 30 bytes per state for N=20.) Assuming that you have about 8 Megabyte on your system, what maximal fraction of the state-space would you expect to be able to analyze ?

Now set N to 20 and use the bitstate storage option, as follows.

	$ spin -m -a ex.1b		# as before
	$ gcc -DBITSTATE -o pan pan.c	# different
	$ time ./pan
	...
If you did the calculation, you probably estimated that there should be 2,097,151 reachable system states for N=20. What percentage of these states was reached in the new run? How much memory was used [Hint: cf. [1.h] below] ? (Compare to the earlier estimated maximal coverage for a conventional verification and explain the difference.) []

[1.h] The default bitstate space, used above, has 221 bits (i.e., 218 bytes, or about one quarter Megabyte) repeat the run with different amount of memory to get different coverage. Check what percentage of the number of states is reached when you use the 8 Megabyte state space on which your first estimate for maximal coverage in a full state space search was based (223 bytes is 226 bits, which means a runtime flag -w26 )

You should be able to get close to 99% coverage and between 4,000 and 40,000 states analyzed per second. For comparison, the speed on a DEC/VAX-8550 is roughly 16,000 s/s.; on a 30 MIPS Silicon Graphics machine 40,000 s/s; on a Sun 3/60 4,500 s/s. []

2. Verification of a Protocol

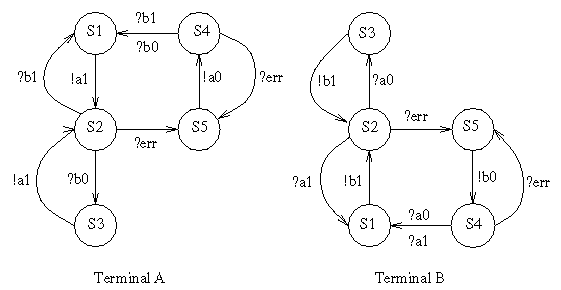

Figure 2 shows a protocol specification given by Bartlett et al. as Figure 3c in their paper introducing the alternating-bit protocol. []

The Promela version of this protocol is shown below. Use Spin to check if it has the property that

  1 #define MAX 4                /* file ex.2 */
  2 proctype A(chan in, out)
  3 {	byte mt; /* message data */
  4 	bit  vr;
  5 S1:	mt = (mt+1)%MAX;
  6 	out!mt,1;
  7 	goto S2;
  8 S2:	in?vr;
  9 	if
 10 	:: (vr == 1) -> goto S1
 11 	:: (vr == 0) -> goto S3
 12 	:: printf("MSC: AERROR1\n") -> goto S5
 13 	fi;
 14 S3:	out!mt,1;
 15 	goto S2;
 16 S4:	in?vr;
 17 	if
 18 	:: goto S1
 19 	:: printf("MSC: AERROR2\n"); goto S5
 20 	fi;
 21 S5:	out!mt,0;
 22 	goto S4
 23 }
 24 proctype B(chan in, out)
 25 {	byte mr, lmr;
 26 	bit ar;
 27 	goto S2; /* initial state */
 28 S1:	assert(mr == (lmr+1)%MAX);
 29 	lmr = mr;
 30 	out!1;
 31 	goto S2;
 32 S2:	in?mr,ar;
 33 	if
 34 	:: (ar == 1) -> goto S1
 35 	:: (ar == 0) -> goto S3
 36 	:: printf("MSC: ERROR1\n"); goto S5
 37 	fi;
 38 S3:	out!1;
 39 	goto S2;
 40 S4:	in?mr,ar;
 41 	if
 42 	:: goto S1
 43 	:: printf("MSC: ERROR2\n"); goto S5
 44 	fi;
 45 S5:	out!0;
 46 	goto S4
 47 }
 48 init {
 49 	chan a2b = [2] of { bit };
 50 	chan b2a = [2] of { byte, bit };
 51 	atomic {
 52 		run A(a2b, b2a);
 53 		run B(b2a, a2b)
 54 	}
 55 }

3. Verification of an Interface Standard

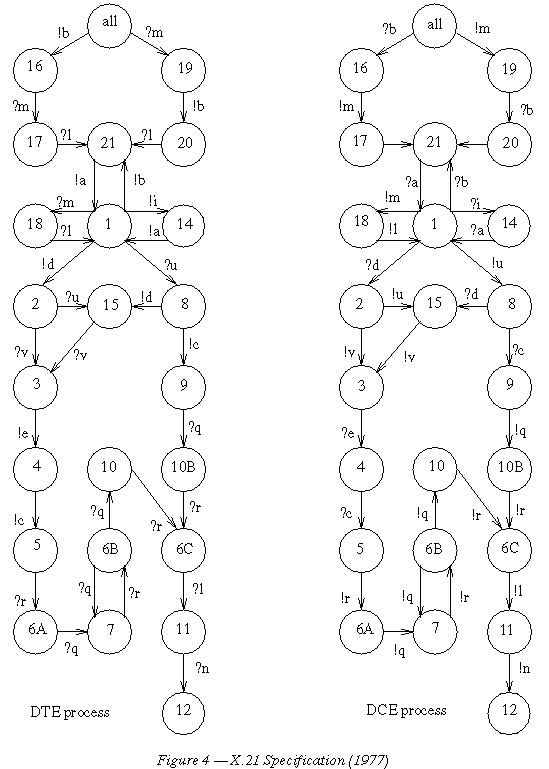

CCITT Recommendation X.21 was one of the first protocols shown to be incompletely specified with an automated analysis. The verification was performed in 1977 by Colin West.

What in 1977 was described as a ``reasonably complex protocol'' is today a rather simple litmus test for automated protocol verifiers, that shouldn't take more than a few milli-seconds of CPU time. The Promela model below is derived from Figure 3, which is based on the specification used by West. (``all'' in Figure 3 means ``all other states.'')

  1 mtype = { a, b, c, d, e, i, l, m, n, q, r, u, v };
  2                                   /* file ex.3 */
  3 chan dce = [0] of { mtype };
  4 chan dte = [0] of { mtype };
  5
  6 active proctype dte_proc()
  7 {
  8 state01:
  9 	do
 10 	:: dce!b -> /* state21 */ dce!a
 11 	:: dce!i -> /* state14 */
 12 			if
 13 			:: dte?m -> goto state19
 14 			:: dce!a
 15 			fi
 16 	:: dte?m -> goto state18
 17 	:: dte?u -> goto state08
 18 	:: dce!d -> break
 19 	od;
 20
 21 	/* state02: */
 22 	if
 23 	:: dte?v
 24 	:: dte?u -> goto state15
 25 	:: dte?m -> goto state19
 26 	fi;
 27 state03:
 28 	dce!e;
 29 	/* state04: */
 30 	if
 31 	:: dte?m -> goto state19
 32 	:: dce!c
 33 	fi;
 34 	/* state05: */
 35 	if
 36 	:: dte?m -> goto state19
 37 	:: dte?r
 38 	fi;
 39 	/* state6A: */
 40 	if
 41 	:: dte?m -> goto state19
 42 	:: dte?q
 43 	fi;
 44 state07:
 45 	if
 46 	:: dte?m -> goto state19
 47 	:: dte?r
 48 	fi;
 49 	/* state6B: */
 50 	if		/* non-deterministic select */
 51 	:: dte?q -> goto state07
 52 	:: dte?q
 53 	:: dte?m -> goto state19
 54 	fi;
 55 	/* state10: */
 56 	if
 57 	:: dte?m -> goto state19
 58 	:: dte?r
 59 	fi;
 60 state6C:
 61 	if
 62 	:: dte?m -> goto state19
 63 	:: dte?l
 64 	fi;
 65 	/* state11: */
 66 	if
 67 	:: dte?m -> goto state19
 68 	:: dte?n
 69 	fi;
 70 	/* state12: */
 71 	if
 72 	:: dte?m -> goto state19
 73 	:: dce!b -> goto state16
 74 	fi;
 75 state15:
 76 	if
 77 	:: dte?v -> goto state03
 78 	:: dte?m -> goto state19
 79 	fi;
 80 state08:
 81 	if
 82 	:: dce!c
 83 	:: dce!d -> goto state15
 84 	:: dte?m -> goto state19
 85 	fi;
 86 	/* state09: */
 87 	if
 88 	:: dte?m -> goto state19
 89 	:: dte?q
 90 	fi;
 91 	/* state10B: */
 92 	if
 93 	:: dte?r -> goto state6C
 94 	:: dte?m -> goto state19
 95 	fi;
 96 state18:
 97 	if
 98 	:: dte?l -> goto state01
 99 	:: dte?m -> goto state19
100 	fi;
101 state16:
102 	dte?m;
103 	/* state17: */
104 	dte?l;
105 	/* state21: */
106 	dce!a; goto state01;
107 state19:
108 	dce!b;
109 	/* state20: */
110 	dte?l;
111 	/* state21: */
112 	dce!a; goto state01
113 }
114 active proctype dce_proc()
115 {
116 state01:
117 	do
118 	:: dce?b -> /* state21 */ dce?a
119 	:: dce?i -> /* state14 */
120 			if
121 			:: dce?b -> goto state16
122 			:: dce?a
123 			fi
124 	:: dte!m -> goto state18
125 	:: dte!u -> goto state08
126 	:: dce?d -> break
127 	od;
128
129 	/* state02: */
130 	if
131 	:: dte!v
132 	:: dte!u -> goto state15
133 	:: dce?b -> goto state16
134 	fi;
135 state03:
136 	dce?e;
137 	/* state04: */
138 	if
139 	:: dce?b -> goto state16
140 	:: dce?c
141 	fi;
142 	/* state05: */
143 	if
144 	:: dce?b -> goto state16
145 	:: dte!r
146 	fi;
147 	/* state6A: */
148 	if
149 	:: dce?b -> goto state16
150 	:: dte!q
151 	fi;
152 state07:
153 	if
154 	:: dce?b -> goto state16
155 	:: dte!r
156 	fi;
157 	/* state6B: */
158 	if		/* non-deterministic select */
159 	:: dte!q -> goto state07
160 	:: dte!q
161 	:: dce?b -> goto state16
162 	fi;
163 	/* state10: */
164 	if
165 	:: dce?b -> goto state16
166 	:: dte!r
167 	fi;
168 state6C:
169 	if
170 	:: dce?b -> goto state16
171 	:: dte!l
172 	fi;
173 	/* state11: */
174 	if
175 	:: dce?b -> goto state16
176 	:: dte!n
177 	fi;
178 	/* state12: */
179 	if
180 	:: dce?b -> goto state16
181 	:: dte!m -> goto state19
182 	fi;
183 state15:
184 	if
185 	:: dte!v -> goto state03
186 	:: dce?b -> goto state16
187 	fi;
188 state08:
189 	if
190 	:: dce?c
191 	:: dce?d -> goto state15
192 	:: dce?b -> goto state16
193 	fi;
194 	/* state09: */
195 	if
196 	:: dce?b -> goto state16
197 	:: dte!q
198 	fi;
199 	/* state10B: */
200 	if
201 	:: dte!r -> goto state6C
202 	:: dce?b -> goto state16
203 	fi;
204 state18:
205 	if
206 	:: dte!l -> goto state01
207 	:: dce?b -> goto state16
208 	fi;
209 state16:
210 	dte!m;
211 	/* state17: */
212 	dte!l;
213 	/* state21: */
214 	dce?a; goto state01;
215 state19:
216 	dce?b;
217 	/* state20: */
218 	dte!l;
219 	/* state21: */
220 	dce?a; goto state01
221 }
Verify the X.21 protocol using Spin. []

4. Verification of Mutual Exclusion Algorithms

If two or more concurrent processes execute the same code and access the same data, there is a potential problem that they may overwrite each others results and corrupt the data. The mutual exclusion problem is the problem of restricting access to a critical section in the code to a single process at a time, assuming only the indivisibility of read and write instructions. (The problem disappears if one can assume an indivisible test-and-set instruction.) The problem and a first solution were first published by Dijkstra.

[4.a] The following `improved' solution appeared one year later in the same journal (Comm. of the ACM, Vol. 9, No. 1, p. 45) by another author. It is reproduced here as it was published (in pseudo Algol).

  1 Boolean array b(0;1) integer k, i, j,
  2 comment process i, with i either 0 or 1 and j = 1-i;
  3 C0:	b(i) := false;
  4 C1:	if k != i then begin
  5 C2:	if not (b(j) then go to C2;
  6 	else k := i; go to C1 end;
  7 	else critical section;
  8 	b(i) := true;
  9 	remainder of program;
 10 	go to C0;
 11 	end
Model the solution in Promela, and proof or disproof the correctness of the algorithm. []

[4.b] The problem continues to be popular. For an overview solution attempts up to roughly 1984, see Raynal or Lamport. For two processes, for instance, a particularly elegant solution was published by Peterson. In Promela the solution can be modeled as follows. The predefined variable \(CW_pid contains the id of the running process: in this case either 0 or 1.

  1 #define true	1                      /* file ex.4b */
  2 #define false	0
  3 bool flag[2];
  4 bool turn;
  5 active [2] proctype user()
  6 {	flag[_pid] = true;
  7 	turn = _pid;
  8 	(flag[1-_pid] == false || turn == 1-_pid);
  9 crit:	skip;	/* critical section */
 10 	flag[_pid] = false
 11 }
Prove Peterson's algorithm correct with Spin. []

[4.c] Despite all the publications, there is no shortage of faulty solutions to the mutual exclusion problem. The next version was recommended by a computer manufacturer to a customer.

  1 byte in;                                    /* file ex.4c */
  2 byte x, y, z;
  3 active [2] proctype user()
  4 {	byte me = _pid+1;			/* me is 1 or 2 */
  5 L1:	x = me;
  6 L2:	if
  7 	:: (y != 0 && y != me) -> goto L1	/* try again */
  8 	:: (y == 0 || y == me)
  9 	fi;
 10 L3:	z = me;
 11 L4:	if
 12 	:: (x != me)  -> goto L1		/* try again */
 13 	:: (x == me)
 14 	fi;
 15 L5:	y = me;
 16 L6:	if
 17 	:: (z != me) -> goto L1			/* try again */
 18 	:: (z == me)
 19 	fi;
 20 L7:						/* success */
 21 	in = in+1;
 22 	assert(in == 1);
 23 	in = in - 1;
 24 	goto L1
 25 }
First try to find a scenario that leads to the assertion violation by studying the algorithm. Next generate the counter-example with Spin. []

5. Verification of Petri Nets

It is often easier to build an little verification model and mechanically verify it than it is to write or to check a manual proof of correctness.

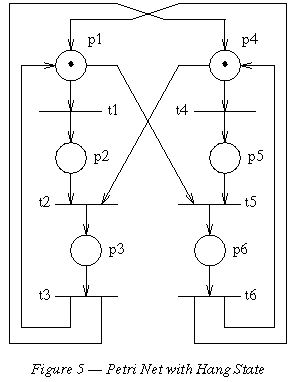

Petri Nets are relatively easy to model as Promela verification models. A Promela model for the net in Figure 4, for instance, is shown below.

  1 #define Place	byte    /* assume < 256 tokens per place */
  2                             /* file ex.5a */
  3 Place p1, p2, p3;
  4 Place p4, p5, p6;
  5 #define inp1(x)		(x>0) -> x=x-1
  6 #define inp2(x,y)	(x>0&&y>0) -> x = x-1; y=y-1
  7 #define out1(x)		x=x+1
  8 #define out2(x,y)	x=x+1; y=y+1
  9 init
 10 {	p1 = 1; p4 = 1;	/* initial marking */
 11 	do
 12 /*t1*/	:: atomic { inp1(p1)	-> out1(p2) }
 13 /*t2*/	:: atomic { inp2(p2,p4)	-> out1(p3) }
 14 /*t3*/	:: atomic { inp1(p3)	-> out2(p1,p4) }
 15 /*t4*/	:: atomic { inp1(p4)	-> out1(p5) }
 16 /*t5*/	:: atomic { inp2(p1,p5) -> out1(p6) }
 17 /*t6*/	:: atomic { inp1(p6)	-> out2(p4,p1) }
 18 	od
 19 }

For this exercise, consider the Petri Net model below, which first appeared as Figure 1 in Berthelot et al.. The net was proven to be deadlock free with a manual reduction and proof technique. Verify the result with Spin. []

  1 #define Place	byte	/* assume < 256 tokens per place */
  2                             /* file ex.5b */
  3 Place P1, P2, P4, P5, RC, CC, RD, CD;
  4 Place p1, p2, p4, p5, rc, cc, rd, cd;
  5
  6 #define inp1(x)		(x>0) -> x=x-1
  7 #define inp2(x,y)	(x>0&&y>0) -> x = x-1; y=y-1
  8 #define out1(x)		x=x+1
  9 #define out2(x,y)	x=x+1; y=y+1
 10
 11 init
 12 {	P1 = 1; p1 = 1;	/* initial marking */
 13 	do
 14 	:: atomic { inp1(P1)	-> out2(rc,P2)	}	/* DC */
 15 	:: atomic { inp2(P2,CC)	-> out1(P4)	}	/* CA */
 16 	:: atomic { inp1(P4)	-> out2(P5,rd)	}	/* DD */
 17 	:: atomic { inp2(P5,CD)	-> out1(P1)	}	/* FD */
 18 	:: atomic { inp2(P1,RC)	-> out2(P4,cc)	}	/* AC */
 19 	:: atomic { inp2(P4,RD) -> out2(P1,cd)	}	/* AD */
 20 	:: atomic { inp2(P5,RD)	-> out1(P1)	}	/* DA */
 21
 22 	:: atomic { inp1(p1)	-> out2(RC,p2)	}	/* dc */
 23 	:: atomic { inp2(p2,cc)	-> out1(p4)	}	/* ca */
 24 	:: atomic { inp1(p4)	-> out2(p5,RD)	}	/* dd */
 25 	:: atomic { inp2(p5,cd)	-> out1(p1)	}	/* fd */
 26 	:: atomic { inp2(p1,rc)	-> out2(p4,CC)	}	/* ac */
 27 	:: atomic { inp2(p4,rd) -> out2(p1,CD)	}	/* ad */
 28 	:: atomic { inp2(p5,rd)	-> out1(p1)	}	/* da */
 29 	od
 30 }

6. The Cambridge Ring Protocol

The model below is based on the description in Needham and Herbert's book.

  1 #define LOSS	0	/* enable or disable message loss */
  2                             /* file ex.6 */
  3 #define QSZ	5               /* length of message queues */
  4
  5 mtype =	{ RDY, NOTRDY, DATA, NODATA, RESET };
  6
  7 chan sender	= [QSZ] of { mtype, byte };
  8 chan recv	= [QSZ] of { mtype, byte };
  9
 10 active proctype Sender()
 11 {	short n = -1; byte t,m;
 12
 13 	xr sender;
 14 	xs recv;
 15
 16 I:		/* Idle State */
 17 		do
 18 #if LOSS==1
 19 		:: sender?_,_ -> progress2: skip
 20 #endif
 21 		:: sender?RESET,0 ->
 22 ackreset:		recv!RESET,0;	/* stay in idle */
 23 			n = -1;
 24 			goto I
 25
 26 		/* E-rep: protocol error */
 27
 28 		:: sender?RDY,m ->		/* E-exp */
 29 			assert(m == (n+1)%4);
 30 advance:		n = (n+1)%4;
 31 			if
 32 /* buffer */		:: atomic {
 33 				printf("MSC: NEW\n");
 34 				recv!DATA,n;
 35 				goto E
 36 			   }
 37 /* no buffer */		:: recv!NODATA,n;
 38 				goto N
 39 			fi
 40
 41 		:: sender?NOTRDY,m ->	/* N-exp */
 42 expected:		assert(m == (n+1)%4);
 43 			goto I
 44
 45 		/* Timeout */
 46 		/* ignored (p.154, in [Needham'82]) */
 47
 48 		:: goto reset	/* spontaneous reset */
 49 		od;
 50 E:		/* Essential element sent, ack expected */
 51 		do
 52 #if LOSS==1
 53 		:: sender?_,_ -> progress0: skip
 54 #endif
 55 		:: sender?RESET,0 ->
 56 			goto ackreset
 57
 58 		:: sender?RDY,m ->
 59 			if
 60 			:: (m == n) ->		/* E-rep */
 61 				goto retrans
 62 			:: (m == (n+1)%4) ->	/* E-exp */
 63 				goto advance
 64 			fi
 65
 66 		:: sender?NOTRDY,m ->	/* N-exp */
 67 			goto expected
 68
 69 		/* Timeout */
 70 		/* a proper behaved timeout leaves part of the
 71 		   protocol specification unreachable;  to check
 72 		   less well-behaved timeout behavior, replace
 73 		   the timeout keyword below with "empty(sender)"
 74 		   to allow the retransmission at any time when the
 75 		   sender queue is empty.  even more mis-behaved
 76 		   timeouts can be checked by replacing timeout with
 77 		   "skip"  (i.e., unconditionally executable)
 78 		*/
 79 		:: timeout ->
 80 			printf("MSC: STO\n");
 81 retrans:		recv!DATA,n	/* retransmit */
 82
 83 		:: goto reset
 84 		od;
 85 N:		/* Non-essential element sent */
 86 		do
 87 #if LOSS==1
 88 		:: sender?_,_ -> progress1: skip
 89 #endif
 90 		:: sender?RESET,0 ->
 91 			goto ackreset
 92
 93 		:: sender?RDY,m ->		/* E-rep */
 94 			assert(m == n)		/* E-exp: protocol error */
 95 			-> recv!NODATA,n	/* retransmit and stay in N */
 96
 97 		:: recv!DATA,n;		/* buffer ready event */
 98 			goto E
 99
100 		:: goto reset
101
102 		/* Timeout */
103 		/* ignored (p.154, in [Needham'82]) */
104 		od;
105
106 reset:		recv!RESET,0;
107 		do
108 #if LOSS==1
109 		:: sender?_,_ -> progress3: skip
110 #endif
111 		:: sender?t,m ->
112 			if
113 			:: t == RESET -> n = -1; goto I
114 			:: else	/* ignored, p. 152 */
115 			fi
116 		:: timeout ->
117 			goto reset
118 		od
119 }
120 active proctype Receiver()
121 {	byte t, n, m, Nexp;
122
123 	xr recv;
124 	xs sender;
125
126 I:		/* Idle State */
127 		do
128 #if LOSS==1
129 		:: recv?_,_ -> progress2: skip
130 #endif
131 		:: recv?RESET,0 ->
132 ackreset:		sender!RESET,0;		/* stay in idle */
133 			n = 0; Nexp = 0;
134 			goto I
135
136 		:: atomic { recv?DATA(m) ->	/* E-exp */
137 			assert(m == n);
138 advance:		printf("MSC: EXP\n");
139 			n = (n+1)%4;
140 			assert(m == Nexp);
141 			Nexp = (m+1)%4;
142 			if
143 			:: sender!RDY,n; goto E
144 			:: sender!NOTRDY,n; goto N
145 			fi
146 		   }
147
148 		:: recv?NODATA(m) ->		/* N-exp */
149 			assert(m == n)
150
151 		/* Timeout: ignored */
152
153 		/* only the receiver can initiate a data
154 		   transfer; p. 156 [Needham'82]
155 		   this is modeled by the statement below:
156 		*/
157 		:: empty(recv) -> sender!RDY,n; goto E
158
159 		:: goto reset
160 		od;
161 E:
162 		do
163 #if LOSS==1
164 		:: recv?_,_ -> progress1: skip
165 #endif
166 		:: recv?RESET,0 ->
167 			goto ackreset
168
169 		:: atomic { recv?DATA(m) ->
170 			if
171 			:: ((m+1)%4 == n) ->		/* E-rep */
172 				printf("MSC: REP\n");
173 				goto retrans
174 			:: (m == n) ->			/* E-exp */
175 				goto advance
176 			fi
177 		   }
178
179 		:: recv?NODATA(m) ->		/* N-exp  */
180 			assert(m == n);
181 			goto I
182
183 		/* see also the matching code in the sender model;
184 		   to check less well-behaved timeout behavior for
185 		   the receiver process, replace the timeout keyword
186 		   below with "empty(recv)" (or "skip" for a real
187 		   torture test, with significant extra complexity)
188 		*/
189 		:: timeout ->
190 			printf("MSC: RTO\n");
191 retrans:		sender!RDY,n;
192 			goto E
193
194 		:: goto reset
195 		od;
196 N:
197 		do
198 #if LOSS==1
199 		:: recv?_,_ -> progress0: skip
200 #endif
201 		:: recv?RESET,0 ->
202 			goto ackreset
203
204 		:: recv?DATA(m) ->		/* E-rep */
205 			assert((m+1)%4 == n);	/* E-exp and N-exp: error */
206 			printf("MSC: REP\n");
207 			sender!NOTRDY,n	/* retransmit and stay in N */
208
209 		:: sender!RDY,n ->		/* buffer ready event */
210 			goto E
211
212 		/* Timeout: ignored */
213
214 		:: goto reset
215 		od;
216 progress:
217 reset:		sender!RESET,0;
218 		do
219 #if LOSS==1
220 		:: recv?_,_ -> progress3: skip
221 #endif
222 		:: recv?t,m ->
223 			if
224 			:: t == RESET -> n = 0; Nexp = 0; goto I
225 			:: else	/* ignored, p. 152 */
226 			fi
227 		:: timeout ->
228 			goto reset
229 		od
230 }

7. Sleep-Wakeup Process Scheduling

The model below for implementing sleep and wakeup routines in a distributed operating systems kernel is based on Ruane's description. The model contains an error that can be detected as a fair non-progress cycle (use runtime options -l and -f). Try to determine the cause of the error, and how to fix it. (It can be repaired by the addition of one single statement in the client process.)

  1 mtype = { Wakeme, Running };        /* file ex.7 */
  2
  3 bit	lk,	sleep_q;
  4 bit	r_lock,	r_want;
  5 mtype	State =	Running;
  6
  7 active proctype client()
  8 {
  9 sleep:					/* sleep routine */
 10 	atomic { (lk == 0) -> lk = 1 };	/* spinlock(&lk) */
 11 	do				/* while r->lock */
 12 	:: (r_lock == 1) ->		/* r->lock == 1 */
 13 		r_want = 1;
 14 		State = Wakeme;
 15 		lk = 0;			/* freelock(&lk) */
 16 		(State == Running);	/* wait for wakeup */
 17 	:: else ->			/* r->lock == 0 */
 18 		break
 19 	od;
 20 progress:
 21 	assert(r_lock == 0);		/* should still be true */
 22 	r_lock = 1;			/* consumed resource */
 23 	lk = 0;				/* freelock(&lk) */
 24 	goto sleep
 25 }
 26
 27 active proctype server()		/* interrupt routine */
 28 {
 29 wakeup:					/* wakeup routine */
 30 	r_lock = 0;			/* r->lock = 0 */
 31 	(lk == 0);			/* waitlock(&lk) */
 32 	if
 33 	:: r_want ->			/* someone is sleeping */
 34 		atomic {		/* spinlock on sleep queue */
 35 			(sleep_q == 0) -> sleep_q = 1
 36 		};
 37 		r_want = 0;
 38 #ifdef PROPOSED_FIX
 39 		(lk == 0);		/* waitlock(&lk) */
 40 #endif
 41 		if
 42 		:: (State == Wakeme) ->
 43 			State = Running;
 44 		:: else ->
 45 		fi;
 46 		sleep_q = 0
 47 	:: else ->
 48 	fi;
 49 	goto wakeup
 50 }

8. A Leader Election Algorithm

The model below follows the description of the leader election protocol in a unidirectional ring from Dolev et al. as it is discussed and formalized by Raynal.

  1 #define N	5	/* nr of processes (use 5 for demos) */
  2 #define I	3	/* node given the smallest number    */
  3 #define L	10	/* size of buffer  (>= 2*N) */
  4                     /* file ex.8 */
  5 mtype = { one, two, winner };
  6 chan q[N] = [L] of { mtype, byte};
  7
  8 byte nr_leaders = 0;
  9
 10 proctype node (chan in, out; byte mynumber)
 11 {	bit Active = 1, know_winner = 0;
 12 	byte nr, maximum = mynumber, neighbourR;
 13
 14 	xr in;	/* exclusive recv access to channel in */
 15 	xs out;	/* exclusive send access to channel out */
 16
 17 	printf("MSC: %d\n", mynumber);
 18 	out!one(mynumber);
 19 end:	do
 20 	:: in?one(nr) ->
 21 		if
 22 		:: Active ->
 23 			if
 24 			:: nr != maximum ->
 25 				out!two(nr);
 26 				neighbourR = nr
 27 			:: else ->
 28 				/* max is greatest number */
 29 				assert(nr == N);
 30 				know_winner = 1;
 31 				out!winner,nr;
 32 			fi
 33 		:: else ->
 34 			out!one(nr)
 35 		fi
 36
 37 	:: in?two(nr) ->
 38 		if
 39 		:: Active ->
 40 			if
 41 			:: neighbourR > nr && neighbourR > maximum ->
 42 				maximum = neighbourR;
 43 				out!one(neighbourR)
 44 			:: else ->
 45 				Active = 0
 46 			fi
 47 		:: else ->
 48 			out!two(nr)
 49 		fi
 50 	:: in?winner,nr ->
 51 		if
 52 		:: nr != mynumber ->
 53 			printf("MSC: LOST\n");
 54 		:: else ->
 55 			printf("MSC: LEADER\n");
 56 			nr_leaders++;
 57 			assert(nr_leaders == 1)
 58 		fi;
 59 		if
 60 		:: know_winner
 61 		:: else -> out!winner,nr
 62 		fi;
 63 		break
 64 	od
 65 }
 66
 67 init {
 68 	byte proc;
 69 	atomic {
 70 		proc = 1;
 71 		do
 72 		:: proc <= N ->
 73 			run node (q[proc-1], q[proc%N], (N+I-proc)%N+1);
 74 			proc++
 75 		:: proc > N ->
 76 			break
 77 		od
 78 	}
 79 }

9. A Go-Back-N Sliding Window Protocol

This go-back-n sliding window protocol follows the description from Tanenbaum. The model below includes some annotations to facilitate simulations.

  1 #define MaxSeq	3	/* window size */
  2 #define Wrong(x)	x = (x+1) % (MaxSeq)
  3 #define Right(x)	x = (x+1) % (MaxSeq + 1)
  4 #define inc(x)		Right(x)
  5                                             /* file ex.9 */
  6 chan q[2] = [MaxSeq] of { byte, byte };	/* message passing channel */
  7
  8 active [2] proctype p5()	/* starts two copies of proctype p5 */
  9 {	byte	NextFrame, AckExp, FrameExp, r, s, nbuf, i;
 10 	chan	in, out;
 11 	in  = q[_pid];
 12 	out = q[1-_pid];
 13 	xr in; xs out;		/* partial order reduction claims */
 14
 15 	do
 16 	:: nbuf < MaxSeq ->	/* outgoing messages */
 17 		nbuf++;
 18 		out!NextFrame , (FrameExp + MaxSeq) % (MaxSeq + 1);
 19 		inc(NextFrame)
 20
 21 	:: q[_pid]?r,s ->	/* incoming messages */
 22 		if
 23 		:: r == FrameExp ->
 24 			printf("MSC: accept %d\n", r);
 25 			inc(FrameExp)
 26 		:: else /* ignore message */
 27 		fi;
 28 		do
 29 		:: ((AckExp <= s) && (s <  NextFrame))
 30 		|| ((AckExp <= s) && (NextFrame <  AckExp))
 31 		|| ((s <  NextFrame) && (NextFrame <  AckExp)) ->
 32 			nbuf--;
 33 			inc(AckExp)
 34 		:: else -> break
 35 		od
 36
 37 	:: timeout ->		/* retransmission timeout */
 38 		NextFrame = AckExp;
 39 		printf("MSC: timeout\n");
 40 		i = 1;
 41 		do
 42 		:: i <= nbuf ->
 43 			out!NextFrame , (FrameExp + MaxSeq) % (MaxSeq + 1);
 44 			inc(NextFrame);
 45 			i++
 46 		:: else -> break
 47 		od
 48 	od
 49 }
When running the verification with partial order reduction enabled (the default), the verifier will complain about a suspected violation of the exclusive channel access assertions (the xr and xs statements). In this case, the complaint is unjustified. It is caused by the attempt to make the code for sender and receiver equal, and the use of a channel array q[]. The complaint can be supressed by compiling as follows:
$ spin -a ex.9
$ gcc -DSAFETY -DXUSAFE -o pan pan.c
$ ./pan -m40000
. . .
The directive -DSAFETY says that we are only interested in safety properties (not LTL properties or cycles). The directive -DXUSAFE tells the verifier that the xr and xs assertions need not be checked.

To reduce the complexity of the model, without affecting its scope, one can add d_step and atomic sequences to the model, as shown in the modified version of this code below.

  1 #define MaxSeq	3                     /* file ex.9b */
  2 #define MaxSeq_plus_1	4
  3 #define inc(x)	x = (x + 1) % (MaxSeq + 1)
  4
  5 chan q[2] = [MaxSeq] of { byte, byte };
  6
  7 active [2] proctype p5()
  8 {	byte	NextFrame, AckExp, FrameExp,
  9 		r, s, nbuf, i;
 10 	chan in, out;
 11
 12 	d_step {
 13 		in = q[_pid];
 14 		out = q[1-_pid]
 15 	};
 16 	xr in;
 17 	xs out;
 18
 19 	do
 20 	:: atomic { nbuf < MaxSeq ->
 21 		nbuf++;
 22 		out!NextFrame , (FrameExp + MaxSeq) % (MaxSeq + 1);
 23 		printf("MSC: nbuf: %d\n", nbuf);
 24 		inc(NextFrame)
 25 	}
 26 	:: atomic { in?r,s ->
 27 		if
 28 		:: r == FrameExp ->
 29 			printf("MSC: accept %d\n", r);
 30 			inc(FrameExp)
 31 		:: else
 32 			-> printf("MSC: reject\n")
 33 		fi
 34 	};
 35 	d_step {
 36 		do
 37 		:: ((AckExp <= s) && (s <  NextFrame))
 38 		|| ((AckExp <= s) && (NextFrame <  AckExp))
 39 		|| ((s <  NextFrame) && (NextFrame <  AckExp)) ->
 40 			nbuf--;
 41 			printf("MSC: nbuf: %d\n", nbuf);
 42 			inc(AckExp)
 43 		:: else ->
 44 			printf("MSC: %d %d %d\n", AckExp, s, NextFrame);
 45 			break
 46 		od; skip
 47 	}
 48 	:: timeout ->
 49 	d_step {
 50 		NextFrame = AckExp;
 51 		printf("MSC: timeout\n");
 52 		i = 1;
 53 		do
 54 		:: i <= nbuf ->
 55 			out!NextFrame , (FrameExp + MaxSeq) % (MaxSeq + 1);
 56 			inc(NextFrame);
 57 			i++
 58 		:: else ->
 59 			break
 60 		od; i = 0
 61 	}
 62 	od
 63 }
Next, we may want to verify that this protocol correctly transfers data, without loss or reordering. The model can be modified as follows to perform these checks. The verifications are based on Wolper's data independence method, using three colored messages (balls). To reduce complexity, we make sure that only one sender transmits the colored balls, and the other checks that they are accepted in the proper sequence. The return direction transmits only dummy balls, and accepts them without check.
  1 #define MaxSeq	3		/* file: ex.9c */
  2 #define MaxSeq_plus_1	4
  3 #define inc(x)	x = (x + 1) % (MaxSeq + 1)
  4
  5 #define CHECKIT
  6
  7 #ifdef CHECKIT
  8 	mtype = { red, white, blue };	/* Wolper's test */
  9 	chan source = [0] of { mtype };
 10 	chan q[2] = [MaxSeq] of { mtype, byte, byte };
 11 	mtype rcvd = white;
 12 	mtype sent = white;
 13 #else
 14 	chan q[2] = [MaxSeq] of { byte, byte };
 15 #endif
 16
 17 active [2] proctype p5()
 18 {	byte	NextFrame, AckExp, FrameExp,
 19 		r, s, nbuf, i;
 20 	chan in, out;
 21 #ifdef CHECKIT
 22 	mtype	ball;
 23 	byte frames[MaxSeq_plus_1];
 24 #endif
 25
 26 	d_step {
 27 		in = q[_pid];
 28 		out = q[1-_pid]
 29 	};
 30
 31 	xr in;
 32 	xs out;
 33
 34 	do
 35 	:: atomic {
 36 		nbuf < MaxSeq ->
 37 		nbuf++;
 38 #ifdef CHECKIT
 39 		if
 40 		:: _pid%2 -> source?ball
 41 		:: else
 42 		fi;
 43 		frames[NextFrame] = ball;
 44 		out!ball, NextFrame , (FrameExp + MaxSeq) % (MaxSeq + 1);
 45 		if
 46 		:: _pid%2 -> sent = ball;
 47 		:: else
 48 		fi;
 49 #else
 50 		out!NextFrame , (FrameExp + MaxSeq) % (MaxSeq + 1);
 51 #endif
 52 #ifdef VERBOSE
 53 		printf("MSC: nbuf: %d\n", nbuf);
 54 #endif
 55 		inc(NextFrame)
 56 	}
 57 #ifdef CHECKIT
 58 	:: atomic { in?ball,r,s ->
 59 #else
 60 	:: atomic { in?r,s ->
 61 #endif
 62 		if
 63 		:: r == FrameExp ->
 64 #ifdef VERBOSE
 65 			printf("MSC: accept %d\n", r);
 66 #endif
 67 #ifdef CHECKIT
 68 			if
 69 			:: _pid%2
 70 			:: else -> rcvd = ball
 71 			fi;
 72 #endif
 73 			inc(FrameExp)
 74 		:: else
 75 #ifdef VERBOSE
 76 			-> printf("MSC: reject\n")
 77 #endif
 78 		fi
 79 	};
 80 	d_step {
 81 	 	do
 82 		:: ((AckExp <= s) && (s <  NextFrame))
 83 		|| ((AckExp <= s) && (NextFrame <  AckExp))
 84 		|| ((s <  NextFrame) && (NextFrame <  AckExp)) ->
 85 			nbuf--;
 86 #ifdef VERBOSE
 87 			printf("MSC: nbuf: %d\n", nbuf);
 88 #endif
 89 			inc(AckExp)
 90 		:: else ->
 91 #ifdef VERBOSE
 92 			printf("MSC: %d %d %d\n", AckExp, s, NextFrame);
 93 #endif
 94 			break
 95 		od;
 96 		skip
 97 	}
 98 	:: timeout ->
 99 	d_step {
100 		NextFrame = AckExp;
101 #ifdef VERBOSE
102 		printf("MSC: timeout\n");
103 #endif
104 		i = 1;
105 		do
106 		:: i <= nbuf ->
107 #ifdef CHECKIT
108 			if
109 			:: _pid%2 -> ball = frames[NextFrame]
110 			:: else
111 			fi;
112 			out!ball, NextFrame , (FrameExp + MaxSeq) % (MaxSeq + 1);
113 #else
114 			out!NextFrame , (FrameExp + MaxSeq) % (MaxSeq + 1);
115 #endif
116 			inc(NextFrame);
117 			i++
118 		:: else ->
119 			break
120 		od;
121 		i = 0
122 	}
123 	od
124 }
125 #ifdef CHECKIT
126 active proctype Source()
127 {
128 	do
129 	:: source!white
130 	:: source!red -> break
131 	od;
132 	do
133 	:: source!white
134 	:: source!blue -> break
135 	od;
136 end:	do
137 	:: source!white
138 	od
139 }
140
141 #define sw	(sent == white)
142 #define sr	(sent == red)
143 #define sb	(sent == blue)
144
145 #define rw	(rcvd == white)
146 #define rr	(rcvd == red)
147 #define rb	(rcvd == blue)
148
149 #define LTL	3
150 #if LTL==1
151
152 never {		/* ![](sr -> <> rr) */
153 /* the claims were produced by spin -f and edited */
154         do
155         :: 1
156         :: !rr && sr -> goto accept
157         od;
158 accept:
159         if
160         :: !rr -> goto accept
161         fi
162 }
163
164 #endif
165 #if LTL==2
166
167 never {		/* !rr U rb */
168 	do
169         :: !rr
170         :: rb -> break	/* move to implicit 2nd state */
171         od
172 }
173
174 #endif
175 #if LTL==3
176
177 never {		/* (![](sr -> <> rr)) || (!rr U rb) */
178
179         if
180         :: 1 -> goto T0_S5
181         :: !rr && sr -> goto accept_S8
182         :: !rr -> goto T0_S2
183         :: rb -> goto accept_all
184         fi;
185 accept_S8:
186         if
187         :: !rr -> goto T0_S8
188         fi;
189 T0_S2:
190         if
191         :: !rr -> goto T0_S2
192         :: rb -> goto accept_all
193         fi;
194 T0_S8:
195         if
196         :: !rr -> goto accept_S8
197         fi;
198 T0_S5:
199         if
200         :: 1 -> goto T0_S5
201         :: !rr && sr -> goto accept_S8
202         fi;
203 accept_all:
204         skip
205 }
206 #endif
207
208 #endif

References


Spin Online References
Promela Manual Index
Promela Grammar
Spin HomePage
(Page Updated: 28 November 2004)
